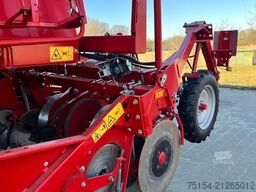

Grimme SE 260 UB

Operating hours: 350, Number of rows: 2, Area performance: 350 ha, Number of rows (2-row), Trailed, Slope compensation, Sorting table, Central lubrication

Axle steering: yes
Operating hours: 350
Bunker capacity: 6000
Ridge pressure control: yes
Drawbar steering: yes
Harvested area: 350
Coarse weed conveyor: yes
Slope compensation: yes
Number of rows: 2
Stone/clod separator: yes
Sorting table: yes
Video monitoring: yes
Central lubrication: yes
Model: 4110-010 SE 260 UB DE - Germany. Delivered with operator's manual in official language. Country-specific configuration for Germany (truck) E.00.410 Incomplete EU type approval (additional national approval required) E.10.010 Ball coupling Ø 80 mm
PTO shaft 1 3/8" with 6 splines
Drive with PTO speed 540 rpm
Direct drive
Row spacing: 75 cm
Intake width: 600 mm

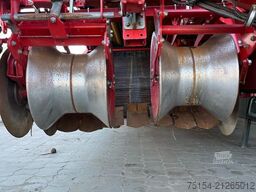

Ridge drums: Ø 390 mm
3-blade coulter, long
E.30.110 Individually adjustable centre coulter instead of intermediate discs
E.30.130 Stone protection for spade coulter
E.30.210 Lifting depth adjustment from terminal
E.30.220 TerraControl
E.30.270 Automatic ridge-centre detection
2 discs
E.30.310 Additional outer disc
Sieving channel width: 1500 mm
1st sieving web pitch: 40 mm
1st sieving web with lock connection
E.40.270 Pitch-independent friction drive for 1st sieving web with support roller
1st sieving web speed – normal
E.40.280 Stainless steel plates (V2A) in oscillating frame
E.40.400 Oscillator on 1st sieving web with speed adjustment from terminal
2nd sieving web pitch: 32 mm
2nd sieving web with lock connection, pitch-independent friction drive
2nd sieving web
Coarse weed conveyor spacing: 200 mm
Front retainer spring, coarse weed conveyor, "standard" version
Conveyor belt 1.
Separator pitch: 40 mm H-profile rubber-finger bar 1st separator
Scraper 1st separator
Smooth roller scraper for 1st separator
E.50.511 Tilt adjustment 1st and 2nd separator from terminal
E.50.520 Height adjustment of scraper roller 1st separator from terminal
E.50.560 Slip monitoring for 1st separator and 2nd sieving web
2nd separator: SB rubber finger web with plates
E.50.645 Scraper 2nd separator smooth roller/spiral roller scraper
E.50.650 Speed adjustment for 2 brush or finger belts from terminal
E.50.740 Speed adjustment 1st and 2nd separator from terminal
E.50.821 Height adjustment of left finger/brush belt from terminal
E.60.160 Discharge chute additionally installed right and left
Wide sorting table (930 mm)
Byproduct conveyor (280 mm)
E.60.270 Sorting belt with cleats
E.60.500 Byproduct conveyor of "plate belt" type
E.60.510 Adjustable byproduct belt, differential speed to sorting table
E.60.570 Stone bunker with discharge belt
E.60.725 Pre-elevator with ultrasound sensor, NEW

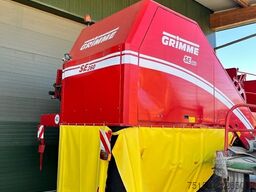

6.0 t bunker
Bunker belt with fabric
E.60.850 Automatic bunker filling incl. automatic pre-elevator and filling optimization
