Низькорамний напівпричіп

KÄSSBOHRER KSLA RJ Mega Jumbo Tieflader tele Wie Neu

Kässbohrer KSLA RJ Mega Jumbo Low Loader with Wheel Wells and Excavator Boom Recess
Hardly Used

Immediately Available
Including Winch

TECHNICAL SPECIFICATIONS:
* Fifth wheel height (H5): approx. 950 mm
* Rear swinging door: 2,300 mm
* Overall length (L): 13,190 mm
* Gooseneck length (Gl): 3,950 mm
* Platform length (Pl): 9,240 mm
* Extension (Pe): 3,500 mm
* Locking position: 500 mm
* Platform height (Ph): 770 mm
* Wheelbase (Wb): 7,800 mm
* Axle spacing (A): 2,260 mm
* Axle load: 24,000 kg
* Axles: 12 tons technical load capacity (10 tons permissible load capacity) BPW
* Axles with drum brakes
* Axle load: 8 tons load capacity
* King pin capacity: approx. 15,000 kg
* Unladen weight ±3%: 12,173 kg
* Overall width (W): 2,550 mm + 600 mm (with extendable sides)
* Sliding platform: Not included
* Total weight (at 80 km/h): 39,000 kg
* Total weight (at 60 km/h): 42,900 kg

RUNNING GEAR:
* Number of axles: 3
* Steering type: 2 x rigid axles at the front, 1 x trailing axle at the rear
* Lift axle: Overload-dependent manual axle lift system on the 1st axle
* Lift axle control: Manual
* Wabco braking system
* Tyres: 12 x 205/65 R17.5
* 1 x spare wheel holder on front bulkhead
* Air suspension, 1 x load gauge indicating pressure at the axle assembly
* NATO socket

CHASSIS:
* S700 MC
* Gooseneck with 90° vertical corners
* 45 mm hardwood floor and steel floor with embossed pattern above the wheel wells only
* Galvanized extensions 8 x 2 for enlarging the platform width up to 300 mm
* Jost landing gear, 50 tons
* Foldable rear supports, 45 tons

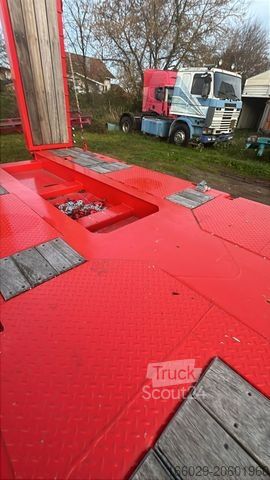

* 2 pairs of wheel wells for transporting wheeled vehicles
* Wheel well bridge for covering the wells

RAMPS:
* Ramp loading capacity: approx. 40 tons
* Suitable for hydraulic folding and adjustment
* Wooden floor, 40 mm thick, 3,070 mm long, 850 mm wide, 3,715 mm high (closed), ramp angle 14°, capacity 40 tons
* Rear ramp safety: Ramp protection chain included

LOAD SECURING:
* Lashing rings: 2 x 2 x 5,000 daN capacity, 1 x 2 x 10,000 daN capacity rings on gooseneck; 3 x 2 x 5,000 daN, 4 x 2 x 10,000 daN rings on the outer platform; 2 x 2 rings with 8,000 daN capacity under the outer frame; 4 x 2 rings with 6,000 daN capacity at the tray area included
* Stake pockets: 5 x 2 stake pockets (52 x 102 mm)
* 6 x container lock housings and 4 x twistlock container locks for transporting 1 x 20FT or 1 x 30FT containers
* Gooseneck panels: 1 x steel front plate (450 mm x 2,550 mm), 2 x aluminum side panels (360 mm x 1,500 mm), 1 x aluminum rear panel (360 mm x 2,550 mm)
* Plug-in stakes: 8 x 2 units, 50 mm x 100 mm

ACCESSORIES:
* 1 x PVC-coated steel toolbox (single lid) 750 x 400 x 360 mm (H x D x W)
* 1 x rotating beacon
* 1 x work light on underrun guard
* Oversize boards with LED lighting 2 x 2 units, 423 mm x 423 mm
* Storage box on gooseneck (600 mm x 830 mm x 2,310 mm)
Lrodpsxy Ddksfx Ab Ujw
* Timber planks for oversize transport
* Chassis color: RAL 3020 Traffic Red

For further information, please do not hesitate to contact us.
