Трьохсторонній самоскид

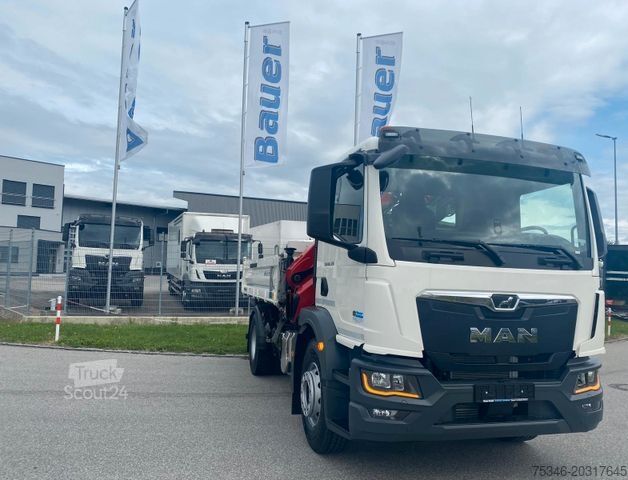

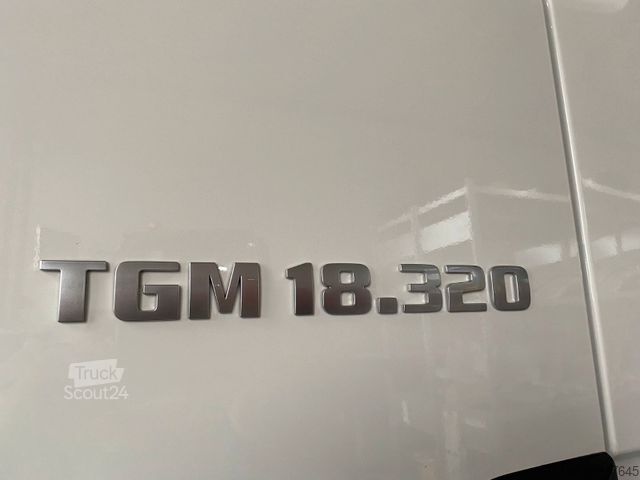

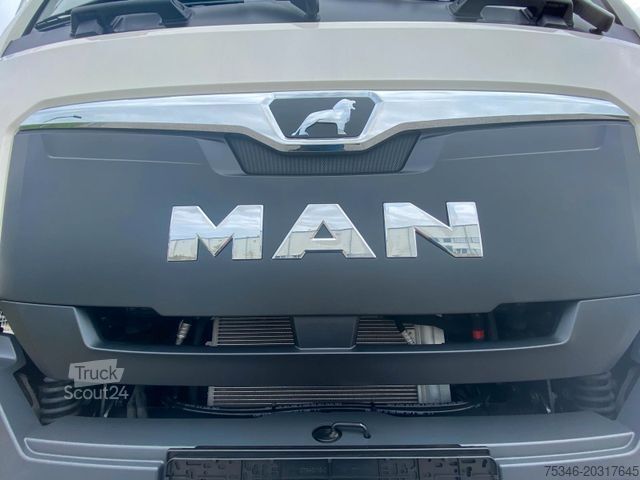

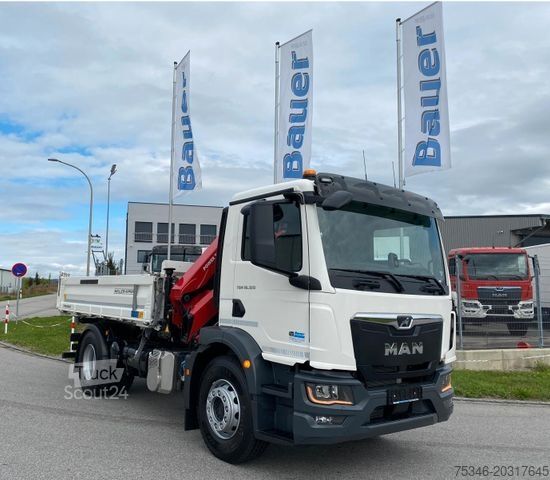

MAN TGM 18.320 /4x2/BL/Meiller/Kipper/Kran/15 m/ Neu

New vehicle 18 t MAN TGM 18.320 BL Meiller 3-way tipper with payload of 8,560 kg and new HMF 1320K5-RCS loading crane featuring hydraulic 5-stage extension up to 14.90 m, radio remote control, 2-stage hydraulically extendable swing-out supports, rotator and grab setup (control circuits 5 and 6), EVS system, Meiller 3-way Trigenius tipper D212, 320 hp, automatic transmission, high-performance engine brake EVB?ec, tow bar with air and hydraulic connections for tipping trailer, air conditioning, rear air suspension, reversing camera, driver's seat package Plus, central locking, and much more.

MAN extended manufacturer's warranty until 05.11.2027 or up to 100,000 km
ATS warranty until 05.11.2029 or up to 240,000 km

Truck specifications:

Mileage: 1,300 km

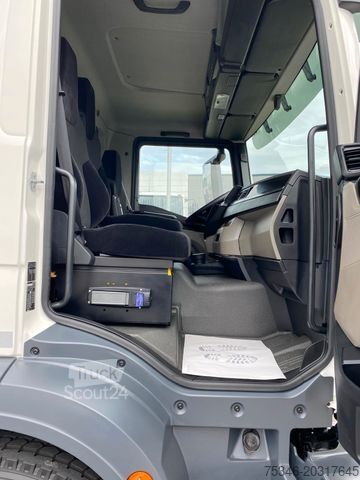

Short CC cab with rear window
3-seater
Drive 4 x 2
Unladen weight 9,440 kg
Payload 8,560 kg
Engine Euro 6 E
Wheelbase 3,875 mm

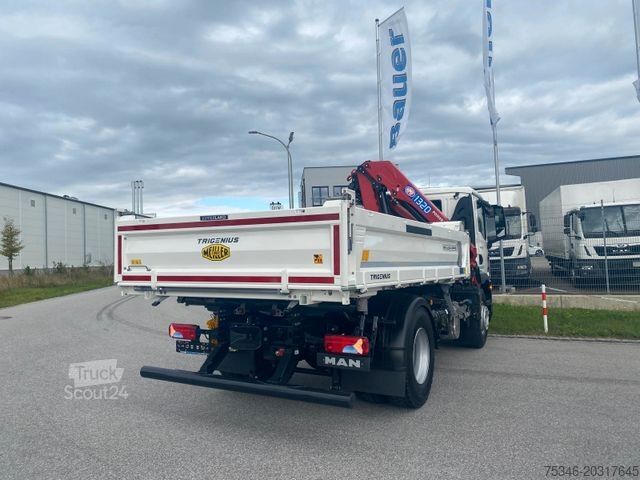

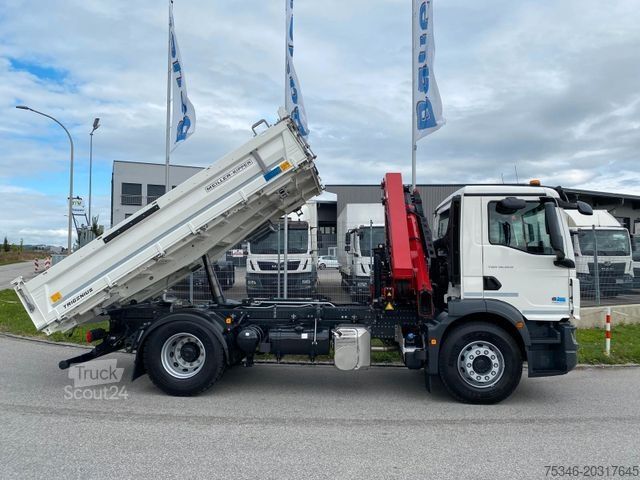

Meiller Trigenius D212, 4,200 x 2,450 mm, drop sides 600 mm high
Front wall 800 mm high
Tipper body floor 4 mm
Load securing with lashing rings in floor and side walls
Side and rear wall 600 mm high
Rear wall of tipper body swinging and foldable
MAN PowerMatic 08.13 OD automatic transmission
Operation via MAN TipMatic steering column stalk
Transmission function MAN Idle Speed Driving
Rockinger towing jaw type 400 G 150 A with compressed air connections
Towing capacity 21,000 kg
Gross combined weight rating 36,000 kg
Tipping hydraulics connectors at rear for 3-way tipping trailer
Front axle leaf suspension, rear axle air suspension
Rear axle differential lock
Front axle 7,500 kg, rear axle 11,500 kg
Stabilizers on front and rear axles
Shock absorbers on front and rear axles
HY axle ratio i=5.29
Full braking assistant
Emergency braking assistant EBA
Lane departure warning LDW
Turning assistant
Driver attention monitoring MAN AttentionGuard
TPMS (tyre pressure monitoring system)
Reversing Motion System (reversing camera)
Traffic sign recognition
Front Detection
EBS with ABS and ASR
Disc brakes on front and rear axles
ESP
High-performance engine brake MAN EVBec, adjustable
Anti-roll-off function MAN EasyStart
Air conditioning
Cruise control
Sun visor
Iodpfx Ahsxpbrqj Hoa
Central locking
2 LED roof beacons on cab roof
2 work lights behind cab roof
Multifunction steering wheel
LED daytime running lights
Electrically adjustable and heated exterior mirrors
Electric window lifters
Driver’s seat package Plus with air suspension, seatbelt height adjustment and seat heating
Comfort seat covers

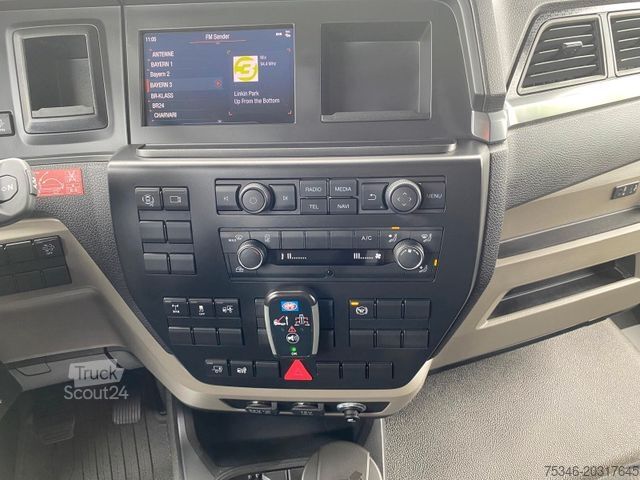

MAN Advanced Media System 7 inch
MAN Sound System
Smartphone integration
New vehicle with day registration

Crane specifications:

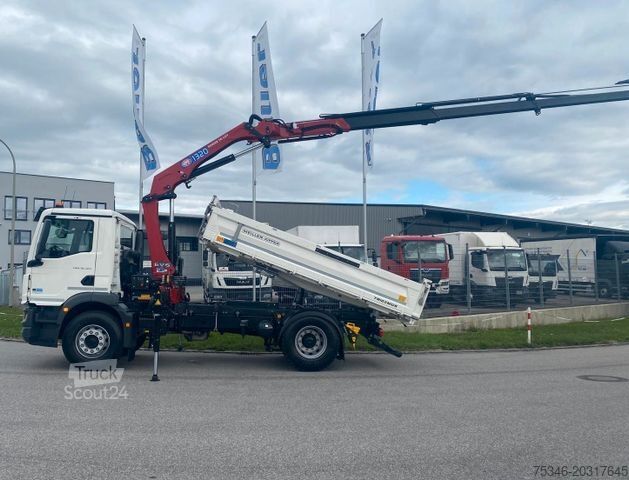

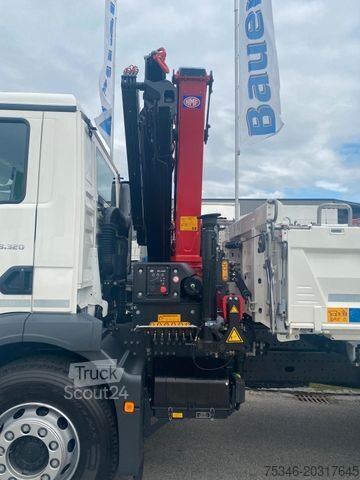

New HMF 1320K5-RCS loading crane with hydraulic 5-stage extension
Manufacturer’s warranty until 09/2027
HMF SC radio remote control with linear console levers
Rotator and grab setup (control circuits 5 and 6)
Lifting capacity approx. 4.50 m / 2,470 kg // 6.30 m / 1,630 kg // 8.40 m / 1,140 kg // 10.60 m / 860 kg // 12.80 m / 680 kg // 14.90 m / 580 kg (manufacturer data)
Hydraulic outreach 14.90 meters
Crane extensions up to 17.30 meters possible
2-stage support with hydraulically extendable swing-out supports
Autoswitch with automatic switching between EVS/CYL operation
Temperature monitoring
LED lamp on articulated boom with 3,040 lumens

Price NET plus 19% VAT. Attractive financing options available on request. All information subject to change. Errors and prior sale excepted.

Internal vehicle number: 2576
