Відкритий напівпричіп з тентом

KRONE SD Plane Mega Edscha Hubdach 2x Liftachse SDP27

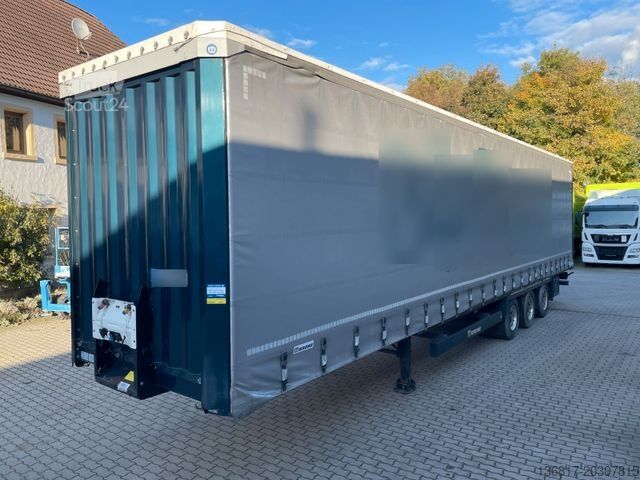

Krone SD Curtain Mega Edscha Lifting Roof 2x Lift Axle (1st + 3rd Axle) Multilock Outer Frame

Permissible total weight: 36,000 kg,
Tare weight: 6,196 kg,
Payload: 29,804 kg,
Fifth wheel height unladen: approx. 985 mm,
BPW axles (Bergische Achsen),

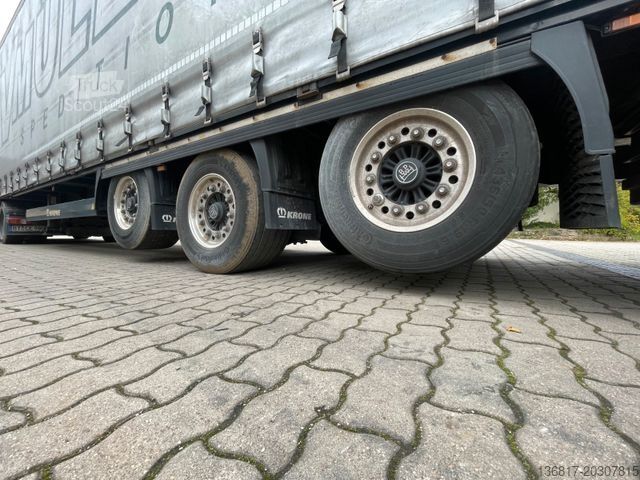

Lift axle: 1st and 3rd axles,
Air suspension,
Disc brakes,
Edscha sliding roof,

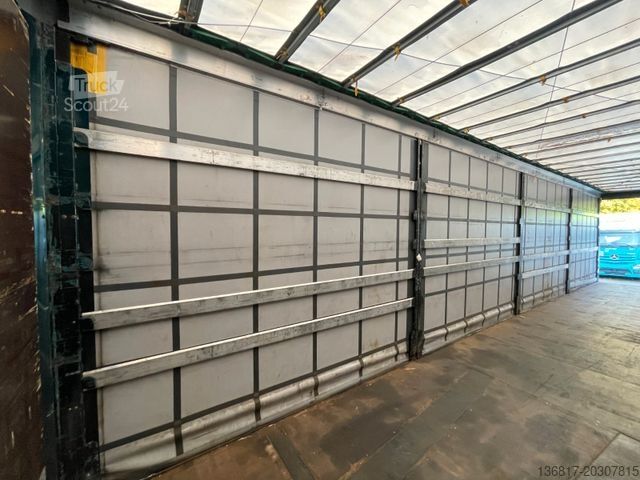

Hydraulic lifting roof with total lift of 500 mm, can be raised separately at all 4 corner posts,
Sliding curtain with wear stripe, curtainslide right and left,

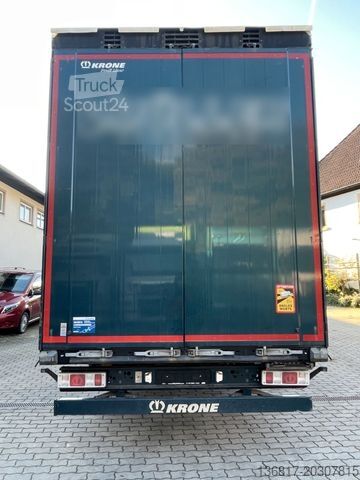

Portal doors,
Side and rear underrun protection on right, left, and rear,
2x crank supports,
Access ladder rear right,

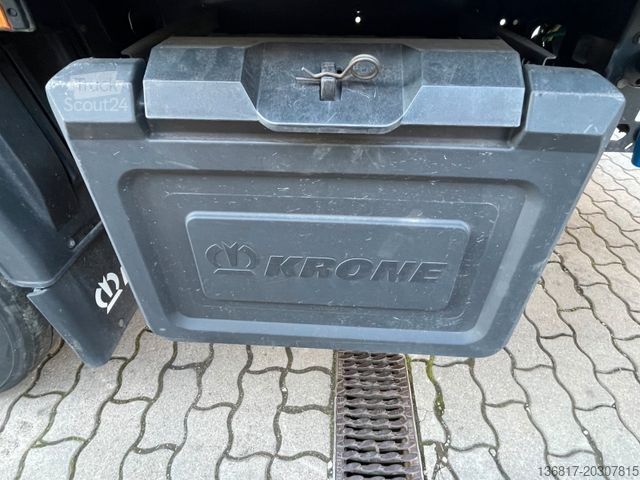

Toolbox left,
Forklift capable,
Metal bumpers,
Multilock outer frame,
ABS,
EBS,
ALB,
DIN EN 12642 Code XL,
Wheelbase: approx. 6,350 + 1,310 + 1,310 mm,
Loading area LxWxH: 13,583 x 2,480 x 2,999 mm,
External dimensions LxWxH: 13,950 x 2,550 x 4,000 mm,
Rear portal through-loading height: 2,795 mm,
Rear through-loading width: 2,480 mm (internal),
Tyres: 435/50R19.5,
1st + 2nd axle on ALCOA aluminium rims,
3rd axle on TruckSpeedline aluminium rims,
Tread depth (left front): 9 mm,
Tread depth (left middle): 10 mm,
Tread depth (left rear): 7 mm,
Tread depth (right front): 4 mm,
Tread depth (right middle): 10 mm,
Tread depth (right rear): 6 mm,

Further features:
Type: SD,
Suitable for tractor unit (ISO 1726 with restrictions—engine vehicle data required!),
Distance kingpin to centre of landing gear approx. 2,720 mm,
Fifth wheel height unladen: approx. 985 mm,

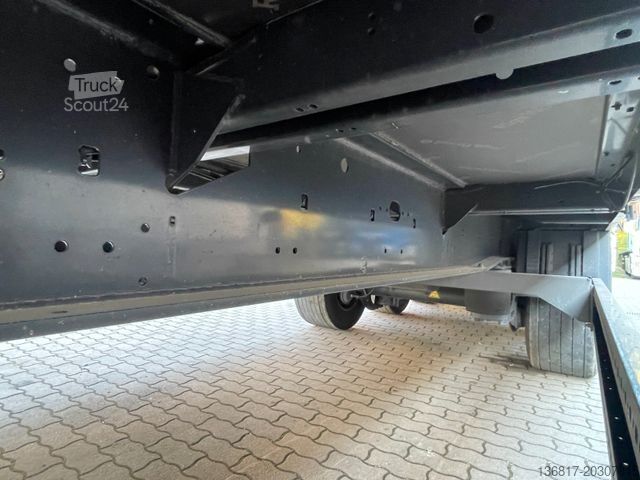

Double T longitudinal and cross beams, as well as outer frame with cross members and cantilevers welded,
Multilock outer frame, universal load securing points every 100 mm,
Front assembly height: 80 mm (including floor and fifth wheel plate),
2" kingpin,
Rear underrun guard per EU directive,
Side underrun protection per EU directive,
Rear sliding step ladder,
Door holder,
Two mechanical landing legs, 2 x 12 t, semi-round with base plate,
Single-side operation of landing legs, FR-right,

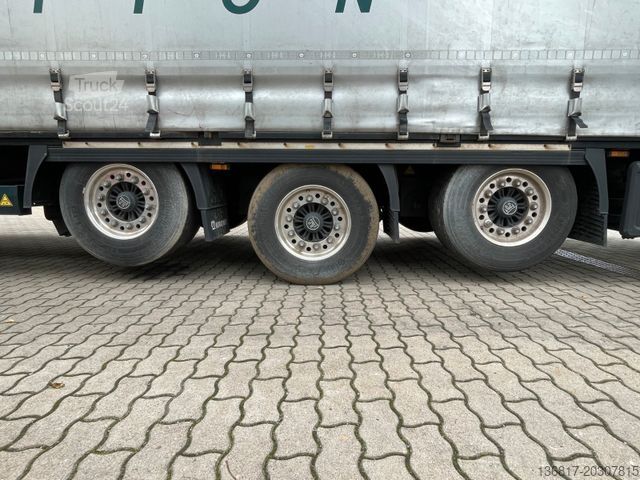

3 axles each 9,000 kg load capacity,

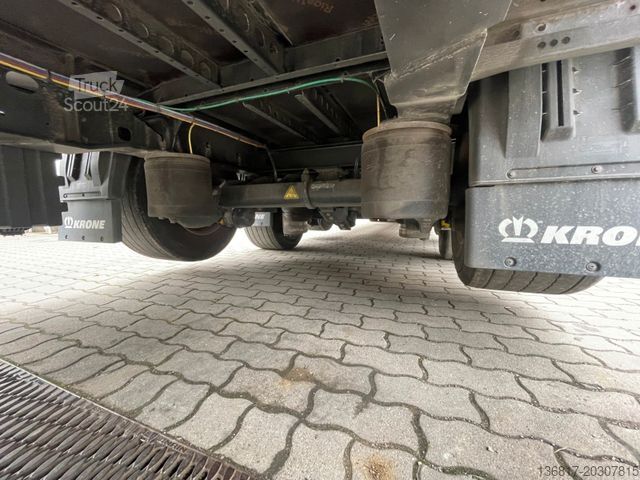

BPW axles, 19.5", with air suspension (total lift 260 mm) and disc brake (ET 120),
Brake disc diameter: 370 mm,
With lift and lower device, incl. automatic ride height reset,
Load-dependent fully automatic electronic lift axle control for 1st axle,
Load-dependent fully automatic electronic lift axle control for 3rd axle,
Manual override on operator console for forced lifting (= starting aid per Directive 97/27/EC) and forced lowering via rotary switch,
Note: reduced ground clearance in the area of lift axles!,
Lift axle switching sequence: 3rd axle lifts first / lowers last,
Plastic wheel covers (fenders),
Splash protection per EU directive,
Brake system per ECE Regulation 13 (incl. vehicle stability function),
Spring-loaded parking brake,

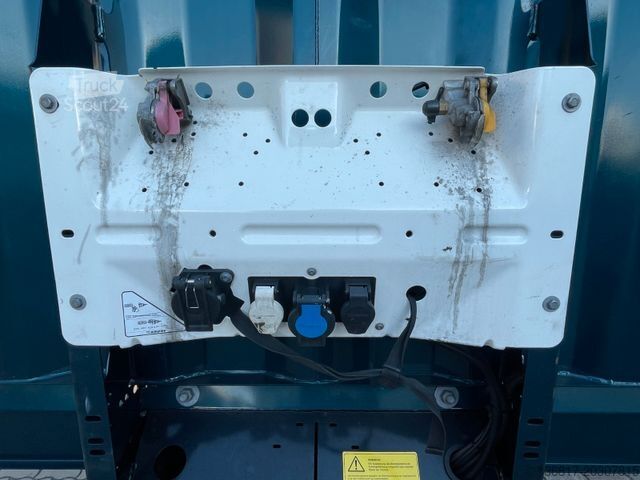

Brake line connections front approx. 675 mm above platform,
Diagnostics via ISO7638 connection (EBS power cable),
Standard air connections ISO 1728 (Palm coupling),
Brake system manufacturer: Wabco,
EBS system, 2S/2M, 2 sensors on one axle,
Lighting and signal system ECE 48,
2 LED license plate lights,
2 outline marker lights with rubber arm, LED version,
LED side marker lights with direction indicator function (flashing),
Power cable connections at front approx. 450 mm above platform,
Hfodpfoxn D Niox Afxjn
24 Volt, front with 7-pin socket DIN ISO 1185,
7-pin DIN ISO 3731 socket in front for additional functions,
Additional 15-pin DIN ISO 12098 socket at front,
Multifunction-
