Фронтальний степлер

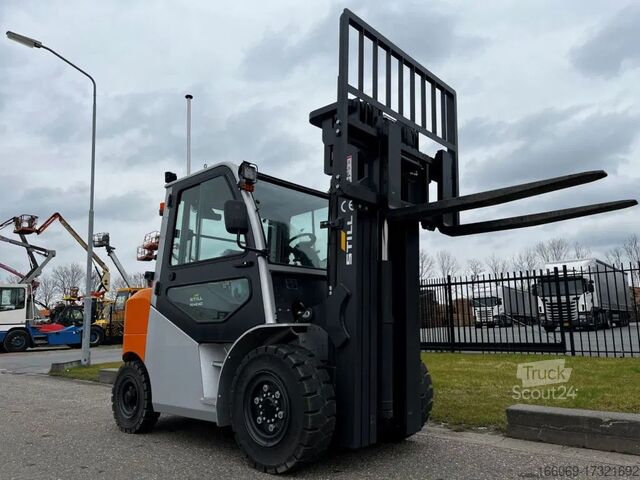

STILL RC 42-40

Technical Data

- Year of manufacture: 2021
- Speed with/without load: 24 km/h
- Cabin roof made of plastic, with heating
- Number of valves: 3
- Rated capacity: 5000 kg
- Load center distance: 500 mm
- Load distance: 567 mm
- Axle load (laden): 10,780 / 1,360 kg
- Axle load (unladen): 3,300 / 4,060 kg
- Track width: 1,180 mm
- Track width: 1,190 mm
- Mast/Carriage tilt (α/β°): 6/12
- Seat height in relation to SIP/stand height: 1,315 mm
- Coupling height: 380 mm
- Aisle width for pallets 1000 x 1200 crosswise: 4,597 mm
- Aisle width for pallets 800 x 1200 lengthwise: 4,797 mm
- Turning radius: 2,830 mm
- Lift height: 3.00 m
- Smallest pivot point distance: 900 mm
- Travel speed laden/unladen: 22/24 km/h
- Lift speed laden/unladen: 0.45/0.49 m/s
- Lowering speed laden/unladen: 0.38/0.26 m/s
- Tractive force laden/unladen: 28/21 kN
- Gradeability laden/unladen: 20/20 %
- Service brake: mechanical/hydraulic
- Rated speed: 2,200 l/min
- Number of cylinders: 4
Gedpfx Asqi Nklom Houi
- Displacement: 2,482 cm³
- Emission standard according to EU Regulation 2016/1628 Stage IIIa
- On-board voltage: 12 V
- Type of drive unit: torque converter
- Operating pressure for attachments: 200 bar
- Oil flow for attachments: 101 L/min
- Fuel tank capacity: 90 l
- Towing hitch type: DIN 15170 pin
- Fully functional, with normal signs of use

Оголошення було перекладено автоматично. Можливі помилки перекладу.
