напівпричіп низькорамний

Kässbohrer

Brand new KASSBOHRER semi-trailer, not yet registered.

Fifth wheel height: 1,250 mm
Overall length: 13,190 mm
Neck length: 3,950 mm
Platform length: 9,240 mm
Platform height: 875 mm
Rear overhang: 8,100 mm
Wheelbase: 1,360 mm
Axle load: 27,000 kg
Unladen weight: approx. 9,300 kg
Total width: 2,550 mm + 600 mm with extendable outriggers
Gross vehicle weight: 39,000 kg

CHASSIS
Manufactured from S700MC steel
Gooseneck with 90° angles
Fifth wheel plate: 2"
BPW axles with third axle steering and first axle liftable
Air suspension
Wabco 4S/3M braking system with ABS and RSS
24V LED electrical system with 2 x 7-pin and 1 x 15-pin sockets
12 tyres 245/70 R17.5 with offset steel rims (main brand selected by manufacturer)

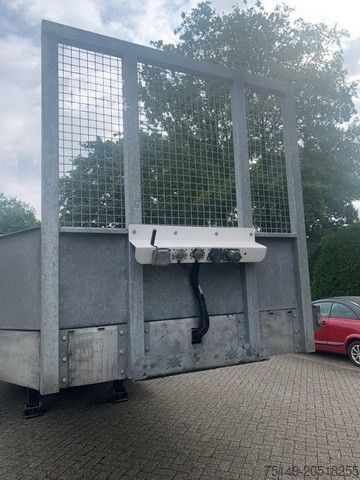

1 spare wheel carrier on the front panel with winch for lifting the spare wheel
Pgodsw Htb Ijpfx Aarsw

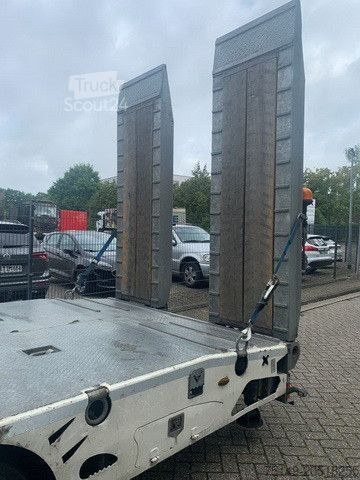

2 long folding hydraulic ramps, sliding sideways, mounted on hardwood deck; length 4,200 mm, width 850 mm, height 3,510 mm when folded, ramp angle 9°, max. load capacity 40,000 kg
Ramps on gooseneck not included

LOAD SECURING
2 x 2 load securing rings on gooseneck, 8 t capacity each
1 x 2 load securing rings on gooseneck, 13.4 t capacity each

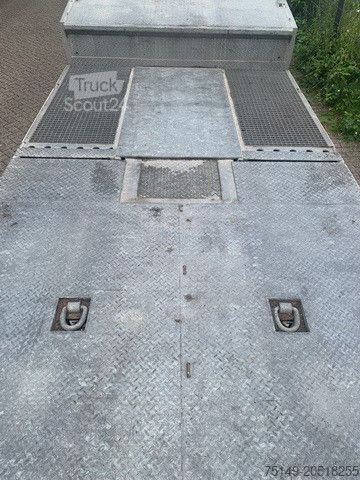

4 x 2 load securing rings on bed, 8 t capacity each
5 x 2 load securing rings on bed, 13.4 t capacity each
5 x 2 load securing rings on side frame, 8 t capacity each

Galvanised steel extendable outriggers 9 x 2 units – 300 mm expandability, incl. marker boards

Оголошення було перекладено автоматично. Можливі помилки перекладу.
